    Forged Brass AC Spare Parts Flare Type Welding Refrigeration Hand Valve For R22

    Ask Lasest Price
    Brand Name : HengXiang
    Model Number : BF
    Certification : ISO9001, CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 50000PCS Per Week
    Delivery Time : 30 Working days
    • Product Details
    • Company Profile

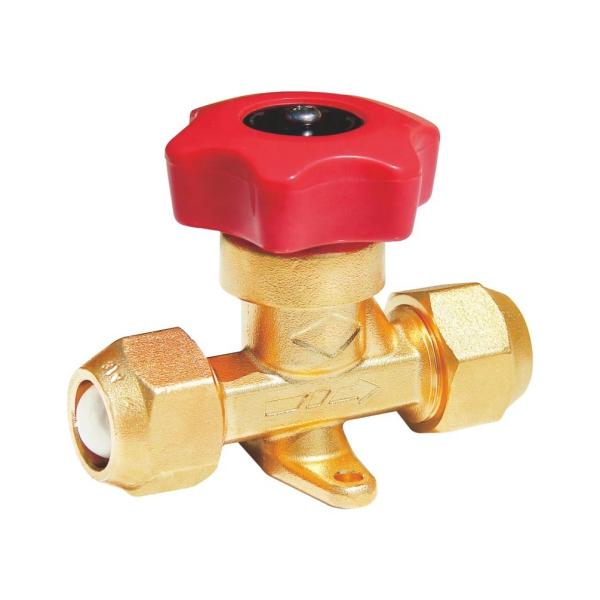

    Forged Brass AC Spare Parts Flare Type Welding Refrigeration Hand Valve For R22

    Flare Type of Forged Brass Welding Hand Valve For HVAC Spare Parts Suit for R22, R134A, R410A, R502, R407C
    Product Introduction:

    Hand valve is a kind of manual stop valve and applicable to one-way flow. It also can be used for the liquid of freezing, refrigeration and air

    conditioning. it is also used in inhale heating pipes. It adopts the modified nylon king material in the valve core to achieve a good sealing, wear-

    resisting and high temperature resistance.


    Sand blasting process & No harm to hands

    1.Adopt high quality copper material to forge forming, with good strength and hardness

    2.Surface blasting process, make the appearance more exquisite and prevent any injury to your hand.

    3.Ergonomic design with good apperance, each switch fits hand pattern well.

    4.Short working trip, quick open and close, only need to turn one and a half round to open or close completely.


    Product Features:

    1.With nylon valve core, durable sealing surface, long service life.

    2.With a stainless steel diaphragm which can avoid leaking during service life.

    3.Just turn one and a half circle to make the valve full open or full closed. Simple operation,flexible start, no noise.

    4. Applicable refrigerant medium:For R2,R134A.R410A.R502,R407C etc.◆Medium temperature:-25°~+100°◆Maximum working pressure:45MPa.


    Product Specifications:

    Order No.Model No.

    Specification


    Connection

    Dimension(mm)

    PCS/CTN

    DLL1R
    H33015SF-BL-02

    1/4

    ODFø6.35606663572
    H33016SF-BH-02SAE7/16-20UNF581372
    H33017SF-BL-03

    3/8

    ODFø9.52525.572
    H33018SF-BH-03SAE5/8-18UNF601372
    H33019SF-BL-04

    1/2

    ODFø12.78068441.336
    H33020SF-BH-04SAE3/4-16UNF811736
    H33021SF-BL-05

    5/8

    ODFø15.88827.536
    H33022SF-BH-05SAE7/8-14UNF841736
    H33023SF-BL-06

    3/4

    ODFø19.05858.536
    H33024SF-BH-06SAE1-1/16-14UNF8717.436
    H33025SF-BL-06A

    3/4

    ODFø19.05908.51105024
    H33026SF-BH-06ASAE1-1/16-14UNF1052424
    H33027SF-BH-07

    7/8

    ODFø22.38312.48441.324
    H33028SF-BL-07SAE1-3/16-12UNF105241105024

    Forged Brass AC Spare Parts Flare Type Welding Refrigeration Hand Valve For R22

    Forged Brass AC Spare Parts Flare Type Welding Refrigeration Hand Valve For R22

    Q1: Can you provide sample?

    A1: Yes, we can send the sample for free but not pay the sample freight.


    Q2: What kind of Certificate do you have?
    A2: Our products have the ISO9001,ISO17025,ISO14001,ISO14001,ISO 45001 SCOC.


    Q3: How are orders packed?
    A3: Normally boxes packed inside an outer carton and placed on a wooden pallet.

    Q4: How long is the warranty of your products?
    A4: We provide one year after-sale guarantee.

    Q5: Can you produce the products labeled with the client's brand?

    A5: OEM, ODM are supported.

    Q6: What kind of payment terms do you accept?
    A6: Normally 30% T/T in advance as deposit, balance paid before shipment.
