Defrost Sensor and Thermal Fridge Spare Parts Defrost Thermostat
with fuse for Refrigerator
Product Description
The Series 1/2 "(12.7mm) bimetal defrosting section thermostat is
used for the temperature control of refrigerators and air
conditioners, as well as for the automatic temperature control of
dehumidifiers and refrigerators heating and defrosting and the safe
arrangement of system temperature limit. Structure features: resin
seal, electrical parts completely sealed, easy installation,
moisture-proof, moisture-proof, etc.
Main Technical Specification:
Action Feature: Single Cutter,, Single Throw(SPST)
Electric Rating: 250VAC SA
Insulation Resistance:≥10M2
Action Temperature Range:-30℃~90℃
Product Info
| ltem NO. | ST-004 3036B |
| Use | Defrost/Temperature control/Protection |
| Appliance | Refrigerators, Freezer |
| Reset type | Automatic |
| Basic material | Bakelite, Copper, Silver |
| Amperage | 5A |
| Max. Operating Temperature | 90°C |
| Differential | According to the requirement |
| Min. Diff | 8°C |
| Tolerance | Refer to the regulation |
| Cold-resistant Temperature | -30°C |
| Limit of the tolerance(OFF) | ±3°C |
| Limit of the tolerance(ON) | ±3°C |
| Contact material | Silver |
| Dielectric Strength | Parts between electriferous components and non-electriferous ones
can bear 2000V (3750V for Reinforced insulation type) 50Hz AC
current, which is nearly sine wave, for one minute as bearing test.
Resulted no breakdown, no flashover. |
| Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over
10MW. |
| Resistance Between Terminals | Below 50mW |
| Temperature characteristics | Normal close, Normal open |
| Maximum Ambient Temperature | 90°C |
| Diameter of Bimetal Disc | F12.7mm(1/2″) |
| Tube Color | Pink |

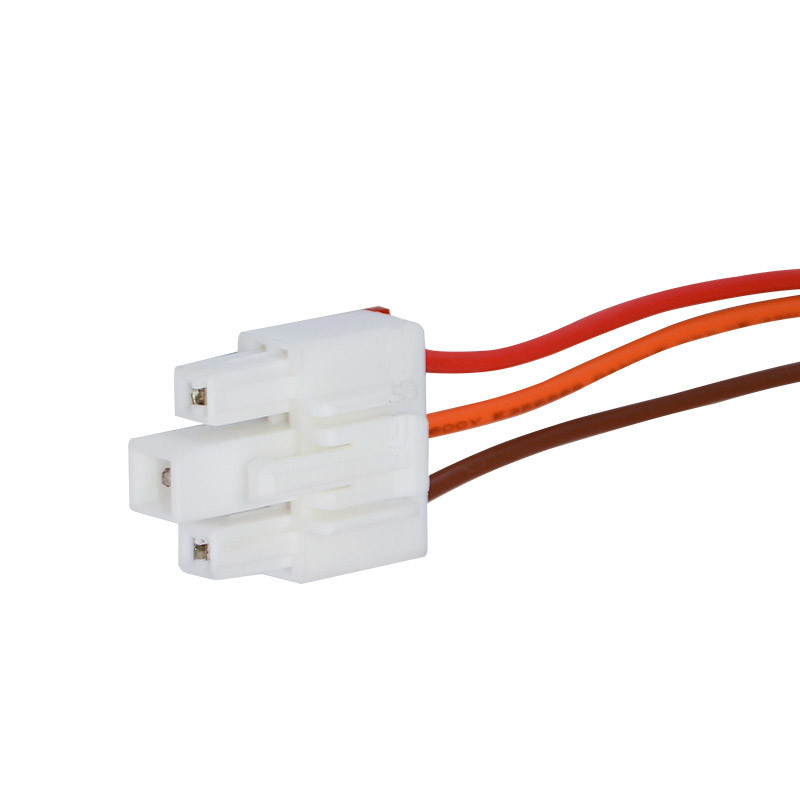

| Terminal type | Customized (Refer to our specification) |
| Cover/Bracket | Customized (Refer to our specification) |
Variable temperature area sensor:
Temperature sensor: Use for displaying the temperature and control of the variable
temperature room (the temperature in this area is generally between
-7 degrees to 5 degrees)
Defrost sensor: Temperature sensor generally disconnected at normal temperature,
closed below -7 °C ! The defrost heater is electrified to heat up
and defrost the evaporator! (In a refrigerator, this sensor must be
used with a fuse)
Ice temperature sensor: Temperature sensor apply to display the temperature of the ice
temperature area Refrigeration evaporator sensor: temperature
sensor, used to control the temperature of the refrigerator
compartment.
Packaging & Delivery
Single package size: 20X10X5 cm
Single gross weight: 0.500 kg
Package:45*35*30CM 500PCS/CTN GW:16KGS NW:15KGS
