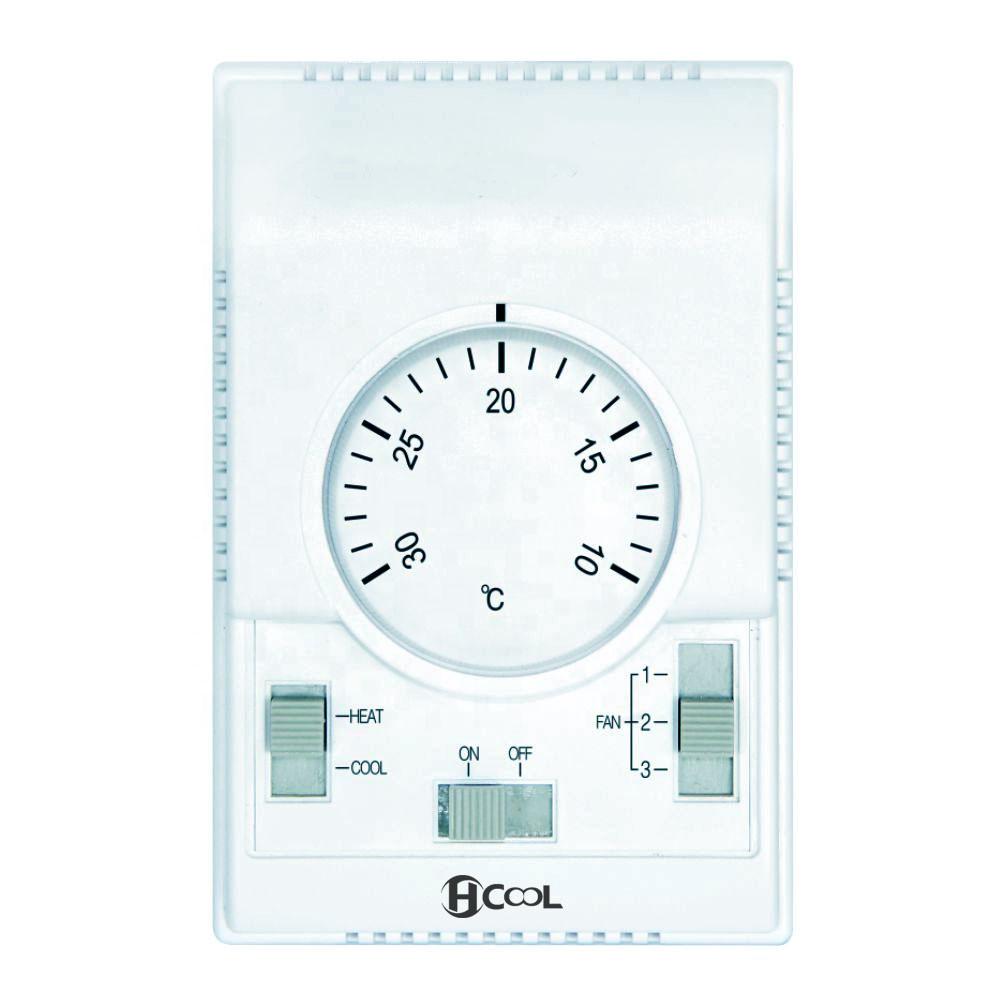

HVAC Smart Mechanical Thermostat for Room Air Condition in Commercial Building, Residential Building, Hotel

Product Details:

Model Number: WKQ-J01A , WKQ-J01B

Certificate: ISO9001

Usage: HAVC System

Voltage: 90-260V

Installation: Wall Mounted Installation

Power Supply: 95~240VAC

Highlight: Energy Saving, Simple operation

Loading port & Delivery

Loading Port: Ningbo/Shanghai

Delivery Support: By Land, by Sea or by Air

Product Description

Functions:

1, It can be used in commercial, industrial and civil construction, and can control the fan coil of center air-condition
endmost equipment, motorized valve and damper.

2, It is used for keeping the temperature constant according to your operation. All switches are toggle
Matching recommendation: DQF series motorised ball valve.

Installation Notice:

1. The thermostat should be vertically installed on the indoor wall. The distance to the floor must be about 1.5m high to make sure that the thermostat can get enough airflow.

2. There must be no heat source and direct sunlight on the thermostat in the room.

3.Firstly loose the screw of the cover and remove it. Secondly pass the wire through the long hole which is on the upper left side of the base plate.Thirdly connect and fasten the combined terminal. Please do not dismantle the adjusting button during the operation
4.Pass the wire through the square hole which is on the upper right side of the base plate. And connect and fasten the wire according to the wiring diagram

5. Fasten the base plate to the junction box with the matching screws.

6.Put the switch and it's plate to the bottom( marked COOL,3), install the coverMake sure all the parts are in the right place.Then tighten all the
screews.

7. The matching terminal junction box is built-in type. Its size is 86x96x32
