V900 Intelligent Vacuum Pump Rotary Vane 9 CFM 2 Stage Display &
Graph Pressure Refrigeration Spare Parts
Description

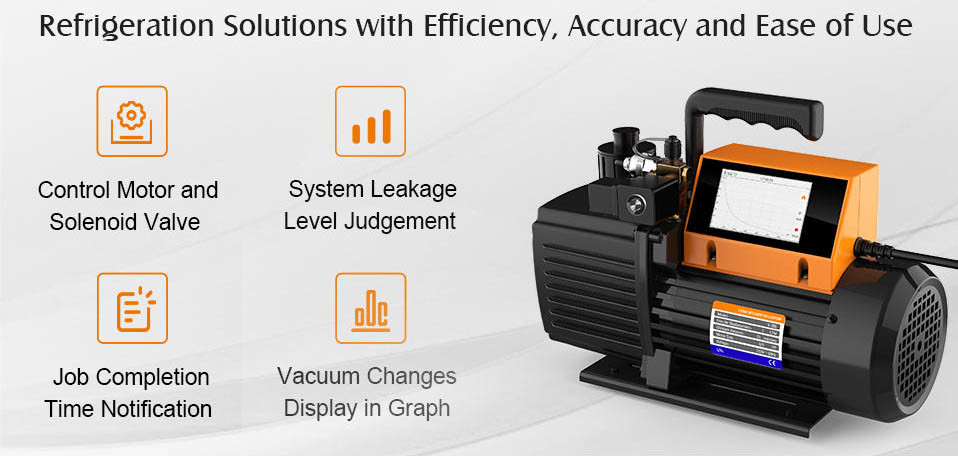

V900 vacuum pump is a 9 CFM, dual-stage unit with an innovative
touch screen design. The screen displays the data change in the
graph to help you know more about how your job is going on.
Feature
【Intelligent Control and Prediction】Control motor and solenoid
valve automatically, determine the system capacity according to the
vacuum data to understand the volume of recharging refrigerants.
【Vacuum Change in Graph】View the vacuum process in real-time;
Predict the leakage status and job completion time
【Monitoring data via App during whole process of vacuuming】 Monitor
data via APP during the entire vacuum process, set your desired
units and log interval
【Smart, Efficient & Reliable】 Constantly vacuum control, oil tank
and motor temperature monitoring
【Easy to Use】 4" touch screen, monitoring via App. Comes with 2
bottles of vacuum oil (300ml+450ml)
Technical Parameter
| Model | V900 |
| Stage | 2 stages |
| Power supply | 110V/60Hz; 220V/50Hz |
| Motor | AC induction motor |
| Speed regulation | Fixed speed |
| Vacuum accuracy | 1-10000 microns: ±10% reading/±10 microns 10000-19000 microns: ±20% reading |
| Operating temperature | 41℉-104℉(5℃-40℃) |
| Transmission distance | 30ft/10m |
| Limit vacuum | 15 microns |
| Pumping rate | 9 CFM (4L/S) |
| Motor power | 1 HP (750W) |
| Fuel volume | 22oz (650ml) |
| Dimensions | 18.5*10.5*14.8in (470*267*380mm) |
| Weight | 35.3Lbs (15.3Kg) |
| Air inlet | 1/4 SAE |
Product Comparision Chart
| | SVP-7 | SVP-9 | SVP-12 | V700 | V900 | V1200 |
| Pumping Rate | 7CFM(3L/S) | 9CFM(4L/S) | 12CFM(5L/S) | 7CFM(3L/S) | 9CFM(4L/S) | 12CFM(5L/S) |
| Stage | 2 | 2 | 2 | 2 | 2 | 2 |
| Limit Vacuum | 15 Microns | 15 Microns | 15 Microns | 15 Microns | 15 Microns | 15 Microns |
| Power Supply | 110V/60HZ(220V customizable) | 110V/60HZ(220V customizable) | 110V/60HZ(220V customizable) | 110V/60HZ(220V customizable) | 110V/60HZ(220V customizable) | 110V/60HZ(220V customizable) |
| Motor Power | 3/4HP(550W) | 1HP(750W) | 1HP(750W) | 3/4HP(550W) | 1HP(750W) | 1HP(750W) |
| Oil Volume | 2202(650ml) | 2202(650 ml) | 25.3oz(750ml) | 22oz(650ml) | 220z(650ml) | 25.302(750ml) |
| Pump Type | Dry Rotary Vane | Dry Rotary Vane | Dry Rotary Vane | Dry Rotary Vane | Dry Rotary Vane | Dry Rotary Vane |
| Transmission Distance | 30ft/10m | 30ft/10m | 30ft/10m | 30ft/10m | 30ft/10m | 30ft/10m |
| weight | 34.2lbs/14.5kg | 35.3lbs/15.3 kg | 36.8lbs/16kg | 34.2 lbs/14.5kg | 34.2135.31bs/15.3sks/14.5kg | 36.8lbs/16kg |
Built-in Vacuum Sensor VS Micron Gauge: Due to the different
placements of vacuum sensors, the vacuum reading of the pump may
vary with the micron gauge which is connected to the system. The
airflow is not the same at different placements in the system when
vacuuming. The air density is larger which is far away from the
pump, so the readings of vacuum are high.
Oil Mist Notes:
When starting vacuuming, the pressure is relatively high, the air
outlet is large. The vacuum pump has a large exhaust volume. So
there will be oil mist overflowing with gas. This is a common
feature of rotary vane vacuum pumps. Oil mist appears at first
which is a normal phenomenon. When the vacuum drops to a very low
value, the exhausting volume is small and there will be no oil
mist. Therefore, the vacuum pump should regularly inspect the oil
level to avoid running out of oil.
